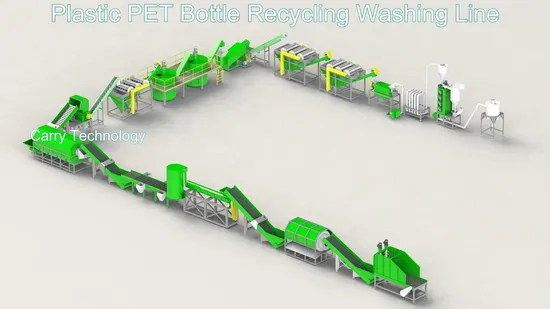

Pet Bottle Recycling Machine Plastic Recycling Plant Waste Plastic Recycle Machine Line
Package size per unit product 850.00cm * 500.00cm * 500.00cm Gross weight per unit product 3000.000kg Pet Material Waste
Description
Basic Info
| Model NO. | BXA |
| Plastic Type | PET |
| Screw | Single-Screw |
| Automation | Automation |
| Computerized | Computerized |
| Certification | ISO9001:2008, CE |
| Raw Material | Pet Baled Bottles or Round Bottles |
| Final Product | Clean Pet Bottle Flakes |
| Name | Plastic Bottle Recycling Machine |
| Technological Process | Crushing-Washing-Drying |
| Keywords | Recycled Plastic Machine |
| Function | Pet Washing Machine |
| Product Name | Hot Washed Pet Flakes |
| Type | Crushing Washing Pet Line |
| Usage | Plastic Washing Recycling |
| Capacity | 1000/2000/3000/5000kg/H |
| Transport Package | Wood/Film |
| Specification | 4200*2350*4870 |
| Trademark | Boxin |
| Origin | Jiangsu |
| HS Code | 8477800000 |
| Production Capacity | 1000kg/H |
Packaging & Delivery
Package size per unit product 850.00cm * 500.00cm * 500.00cm Gross weight per unit product 3000.000kgProduct Description
Pet Material Waste crushing washing pet line with Pressure Sensors crushing washing pet lineProduct Description
1. This PET hot washing plant mainly used for dealing with waste PET bottles, barrels etc.2. To separate dirty PET bottles to flakes with label, cap, oil, garbage etc.3. This PET Bottle Washing Line is composed of sorting, crushing, cold & hot washing , dewatering, drying , packing etc.4. Easy to operate, Full automatic.5. This pet bottle washing line can be displayed "L" or "U" shape according to clients' workshop.6. Reasonable process design and good cleaning effect .
Final PET flakes products have good quality.When processPET bottle, final products humidity below 1%, impurities100ppm,PVC label content 100ppm .The whole line capacity is between 300kg/h-5000kg/hour. High production capacity (more than 30% higher than the same equipment in the same industry), low energy consumption (water, electricity, gas, chemical cleaning agent consumption is 20% lower)The material which contact with water use SUS304 stainless steel, thickness more than 3mm, to ensure long lift time.
| Model | BXA-500 | BXA-1000 | BXA-2000 | BXA-3000 | BXA-5000 |
| Output(KG/H) | 500 | 1000 | 2000 | 3000 | 5000 |
| Installed power(KW) | 160-180 | 210-260 | 400-460 | 600-670 | 920-1200 |
| Water consumption(T/H) | 2-3 | 3-5 | 6-8 | 10-12 | 12-15 |
| Labor requirements | 2-3 | 4-5 | 5-6 | 6-8 | 8-10 |
| Factory area(L*W*H) | 70*5*5 | 85*5*5 | 100*8*6 | 120*6*6 | 135*8*7 |
01 Conveying and De-baling SystemThe adjustable speed metal chain conveyor greatly improves the efficiency and more durable.The De-baler machine adopts the special structure design of angle 2-axis unpacking and 2-axis breaking, which can fully dissolve the bottle bricks to ensure the subsequent conveying process, and at the same time reduce the energy consumption to the greatest extent.02 Label Removing SystemMainly used to peel off the label paper on the PET surface;Ensure the integrity of the bottle and neck, reduce the loss of high-quality bottle finish.03 Manual Sorting SystemFinal classification and sorting of bottles before crushing;The sorting system is a necessary way to ensure the quality of the foreign matter remaining in each unit of the previous section.04 Crushing SystemAccording to different output, choose different types of crusher;The main shaft and box of the crusher are made of wear-resistant materials, which are safer and more durable.05 high Speed Fiction Washing SystemAdd high-speed friction washing machine to remove impurities more effectively and achieve ideal cleaning effect.06 Hot Washing SystemHot washing effectively removes residual glue, oil stains and some fine impurities on the surface of the bottle.07 Dewatering MachineThe moisture content of the final material plays a vital role in the next process;It can be equipped with corresponding centrifugal dehydration and hot air drying system according to your production requirements of moisture content .
What We will Do?After getting waste plastic raw material, BOXIN Technicians will study and analyze the main contaminants to provide a proper solution to remove most of the impurities by mechanical, chemical, physical and other principles.Main process of the whole project included pretreatment of raw material → sorting → pre-washing → crushing → hot washing → cold washing → drying → package → granulation.
BOXIN Machinery is a creative company, focusing on the technology R&D of plastic recycling, and providing the equipment and solutions for plastic washing, recycling and granulating. BOXIN Machinery plastic recycling technology mainly applied in the field of waste plastic regrinding, washing and regranuling. Thanks to the R&D ability and well-understanding industries experience, BOXIN Machinery can provide the customized plastics recycling solutions to customers. Typical productions Machinery can provide are: plastic washing line for PET bottles, PP PE film bags, HDPE Bottles, Plastic pelletizing recycling line for clean PP PE material, plastic shredder and crushers etc. Advantage of Machinery: Specialized R&D team involved in plastics recycling industries more than 18 years; Ability to provide the customized plastic recycling solutions; Complete sales system covering the pre-sale, sales and after sales; Professional engineers will perform debugging and technical guidance.
